External drainage is one of those building systems that usually goes unnoticed until it fails. On a normal day, it works quietly around driveways, podiums, parking areas, landscaped edges and walkways. But during heavy rain, an engineered surface drainage system decides whether a commercial property stays clean and usable, or starts dealing with waterlogging, slippery surfaces and maintenance complaints.
For hotels, malls, hospitals, office complexes, airports, clubs and large commercial infrastructure, external surface water management is part of the building's long-term operational performance. A well-selected system keeps rainwater moving efficiently into stormwater networks, protects finished surfaces, and supports uninterrupted day-to-day operations.
Why External Drainage Matters in Commercial Buildings
Commercial sites usually feature extensive hardscape areas: paved entrances, basement ramps, concrete service roads, tiled walkways, podium slabs, loading bays and multi-level parking zones. These impermeable surfaces do not absorb rainwater naturally. Water requires a planned, hydraulic route from the surface into the stormwater network.
When that route is missing or poorly designed, standing water collects at low points. This damages paving, creates unsightly stains, increases slip risks, affects basement ramps, and degrades property aesthetics. In commercial and hospitality environments, standing water directly impairs visitor experience. A luxury hotel entrance loses its premium appeal if guests must step through puddles after rainfall.
There is also an architectural side to this. In high-end commercial spaces, visible drainage lines should complement flooring, paving, and landscape aesthetics. Specifying a discreet slot drain or an engineered commercial drainage channel manages water efficiently while maintaining a clean, uninterrupted surface finish.
What an External Drainage System Actually Does
An external surface water management network collects rainwater and conveys it safely away from building structures. It typically comprises modular linear channels, slot drains, gratings, catch basins, silt traps, inspection chambers, and stormwater piping. Each component performs a distinct hydraulic and structural role.
The channel or slot opening collects surface runoff across linear spans. Gratings allow water entry while satisfying specific load class requirements (ranging from pedestrian foot traffic to heavy-duty commercial vehicles). Catch basins and silt traps capture sediment, leaves, and debris prior to pipeline entry. Inspection chambers enable straightforward maintenance access. Stormwater piping then carries discharge to recharge pits, harvesting systems, or municipal drainage lines.

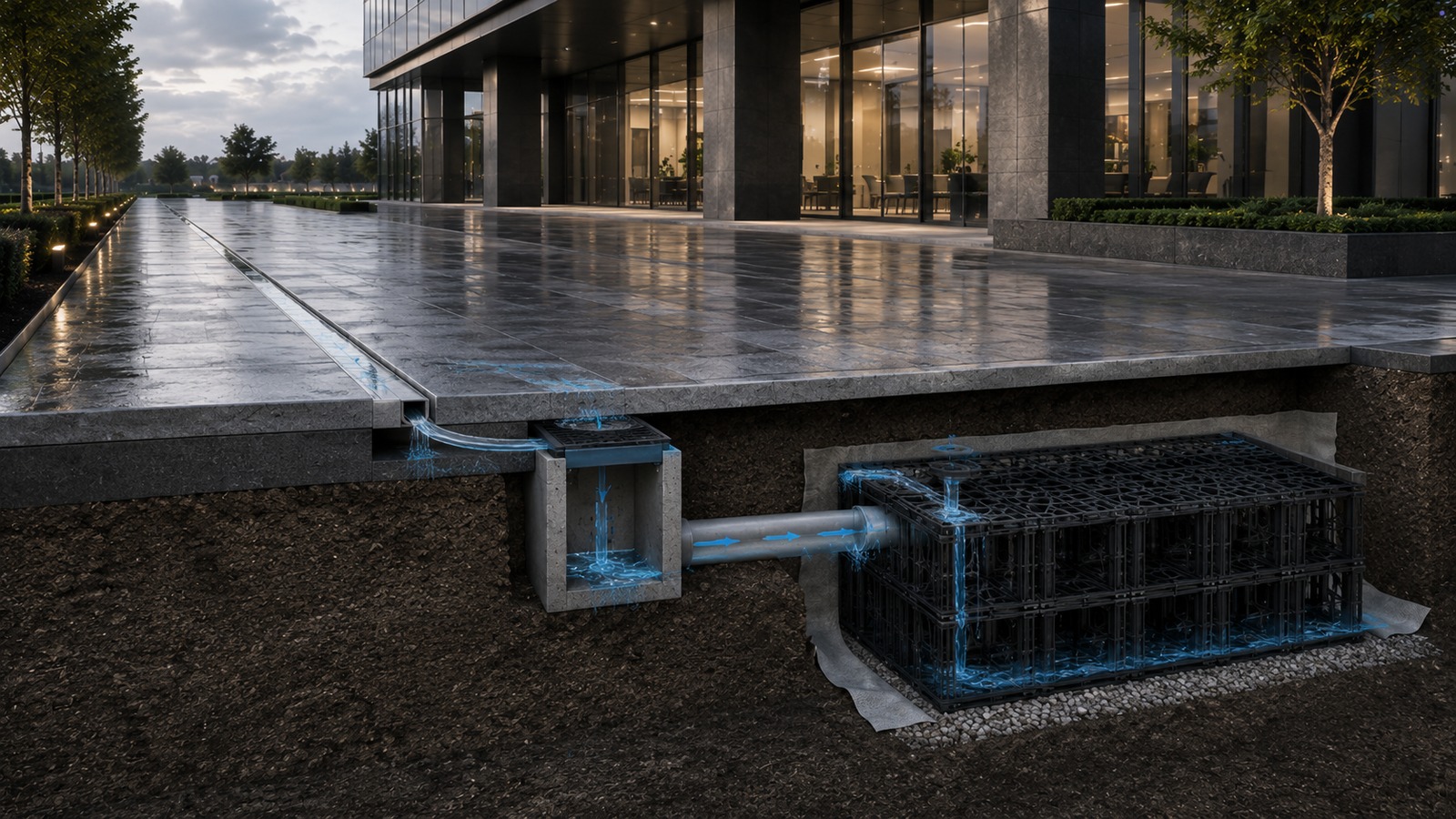

Figure 1: External surface drainage system cutaway showing collection, silt control, and stormwater movement.
Where External Drainage is Required
External drainage is mandatory across all open surfaces where rainwater accumulates. Key installation zones include building perimeters, drop-off concourses, basement entrance ramps, parking decks, podiums, service roads, landscape borders, swimming pool decks, and loading bays.
Drain selection must be tailored to application requirements. Pedestrian walkways and hotel entrances benefit from heel-safe, discreet slot drains blending with architectural flooring. Basement ramps demand higher hydraulic intake capacity and robust load ratings. Service roads require heavy-duty gratings engineered to withstand delivery vehicle axle loads. One uniform channel type cannot be applied indiscriminately across an entire facility.

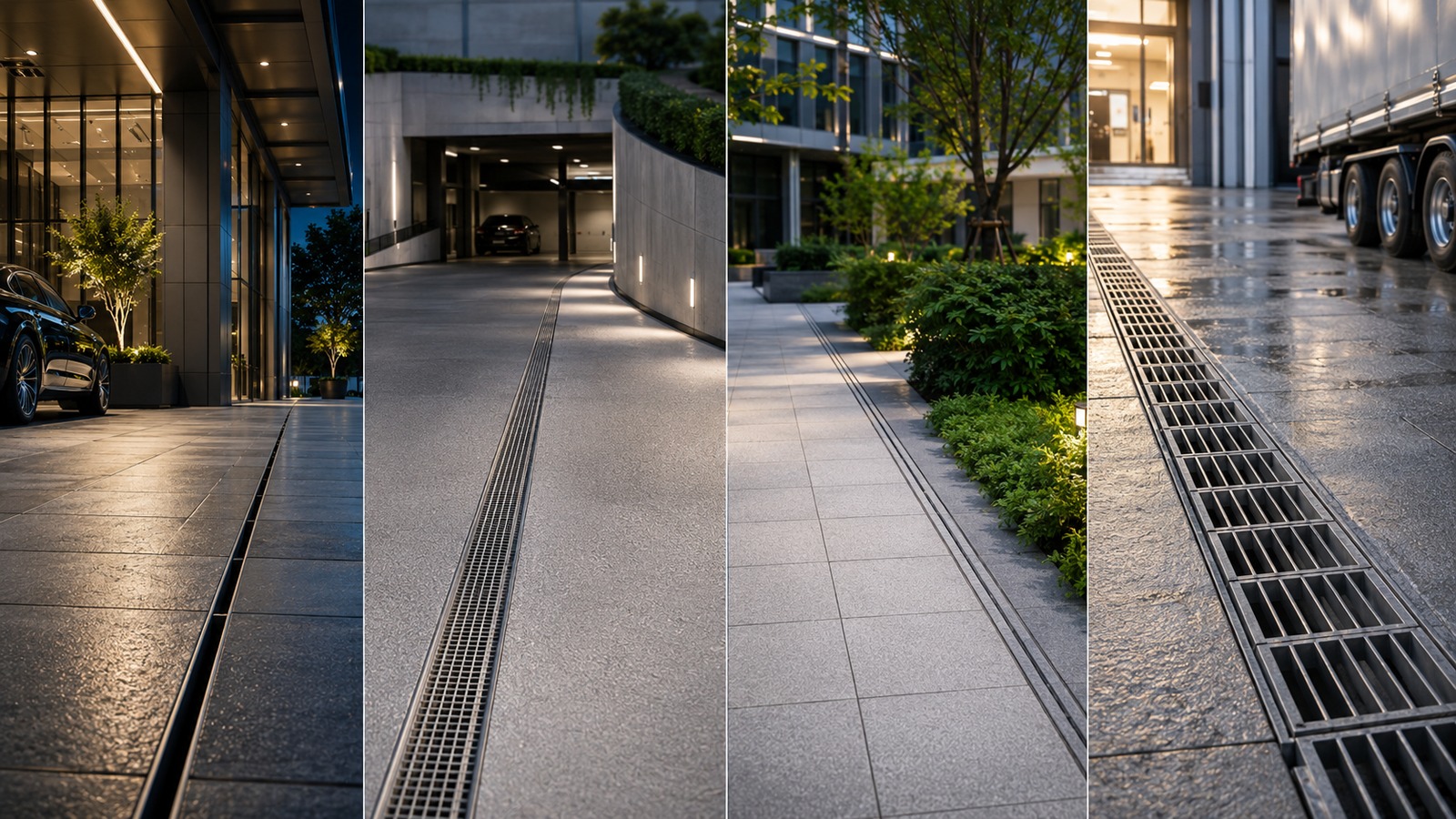

Figure 2: Commercial drainage channel applications across walkways, ramps, landscaped areas, and service zones.
Main Components of an External Drainage System
The visible surface grating is only the top layer of an integrated system. True system performance depends on component synergy.
Linear channels collect water along entire surface lengths—ideal for driveways, ramps, podiums, and parking zones. A high-durability polymer concrete drain channel provides smooth, non-porous internal surfaces that accelerate flow velocity and prevent silt accumulation. Slot drains are specified where minimal visual impact is required. Gratings sit atop channels and must be matched to load classes per EN 1433 standards. Catch basins retain debris, inspection chambers facilitate routine maintenance, and discharge pipes transport water away from foundations.
For commercial infrastructure projects, Fluidverse operates as an experienced ACO drain channel supplier in India. Rather than treating drainage as a generic commodity, Fluidverse assists MEP consultants and contractors in selecting the exact ACO drainage channel configuration based on catchment area, rainfall intensity, load class, surface finish, and long-term maintenance access.

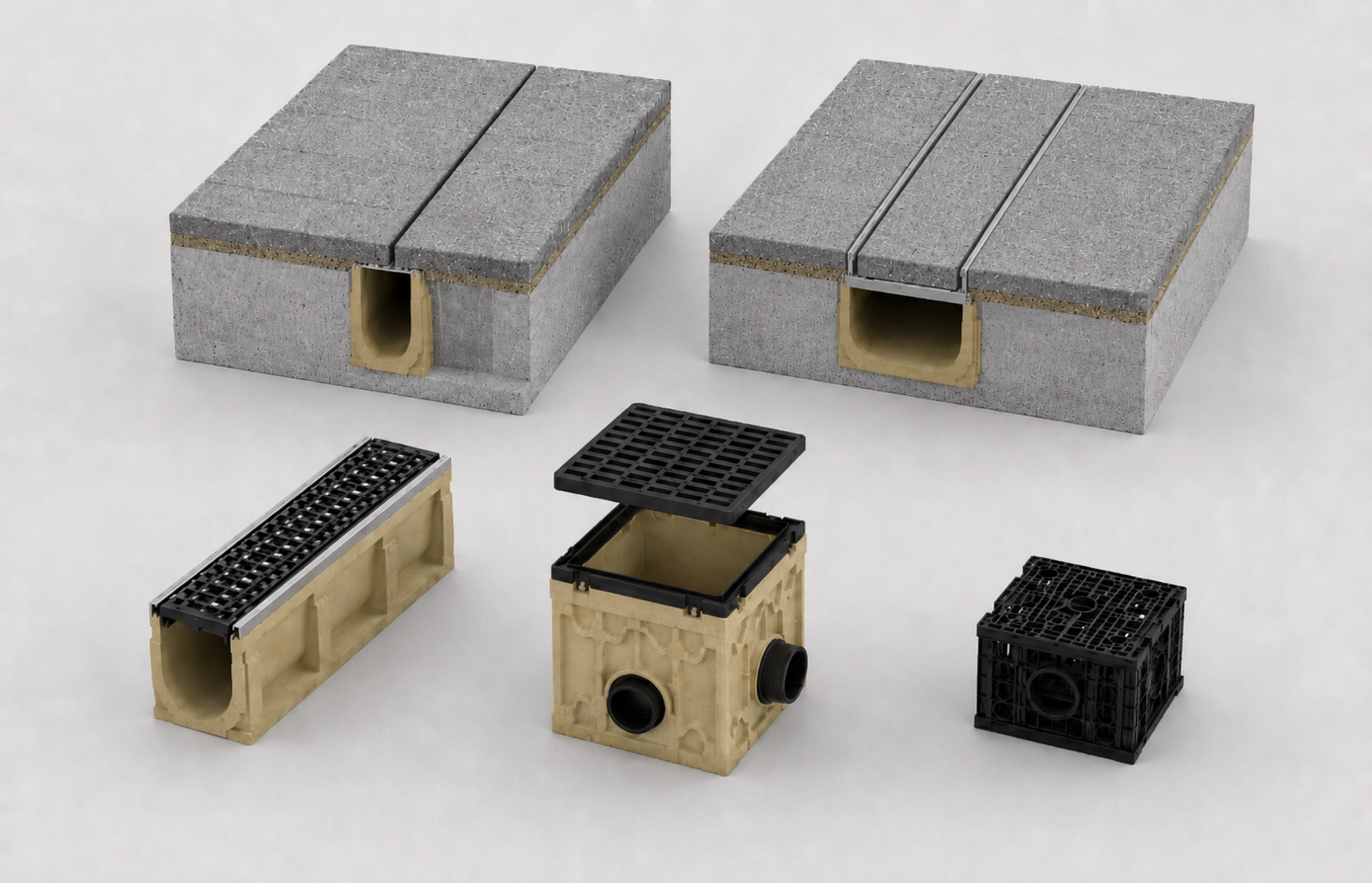

Figure 3: Key external drainage components including ACO drainage channel systems for commercial projects.
Key Design Factors to Check Before Installation
Reliable surface water management begins with rigorous pre-installation engineering. Primary considerations include calculating total catchment surface area and verifying regional peak rainfall intensity. Drainage capacity must be calculated for extreme storm events rather than average weather.
Surface gradients are equally critical; even a premium channel will fail if surrounding paving does not slope correctly toward intake points. Load classes (A15 to F900) must be specified accurately for pedestrian, light vehicle, or heavy commercial traffic zones. Finally, outlet pipe capacity and silt basin access must be verified to prevent downstream bottlenecks.
Benefits of a Properly Designed System
The core benefit is rapid water removal before pooling occurs. This enhances safety, prevents surface erosion, and keeps commercial access points operational during heavy downpours. It also protects paving, podium waterproofing membranes, basement structures, and landscaped areas from long-term water damage.
Properly engineered systems also minimize maintenance overhead. Accessible silt traps and inspection chambers streamline routine cleaning and mitigate blockage risks. For property developers, this translates to reduced operational disruption and enhanced asset longevity.
Common Mistakes to Avoid
A frequent error is treating surface drainage as a late-stage civil detail after slopes and finished floor levels are finalized. Another common mistake is misjudging load class requirements, leading to cracked gratings under vehicle weight.
Ignoring maintenance accessibility or under-sizing discharge outlets also compromises overall hydraulic performance. External surface drainage functions as an interdependent chain: slope, collection channel, silt trap, inspection access, and discharge piping must all be engineered to work in harmony.
Conclusion & System Selection Support
External drainage is an essential engineering discipline that safeguards commercial infrastructure during peak rainfall events.
For hotels, shopping malls, hospitals, commercial office parks, and industrial facilities, specifying an engineered surface drainage system ensures long-term reliability, regulatory compliance, and clean architectural aesthetics. Fluidverse provides comprehensive technical support, hydraulic calculations, and project-specific channel selection.
